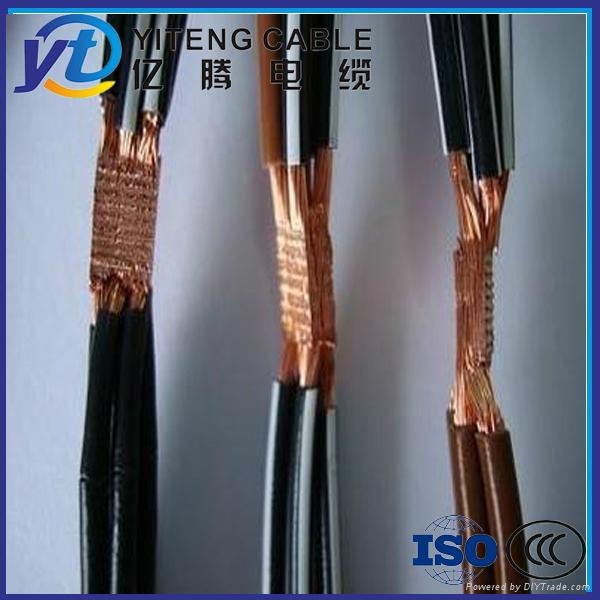

Δ Shielded Cable(Computer Shielded Cable, Shielded Control Cable, Shielded Cable with Armor);
Δ Power Cable(PVC and XLPE Insulated Cables in Low/ Medium/ High Voltage; Steel Tape and Steel Wire Armored Cables);
Δ Rubber Cable;
Δ Special Cable;
Δ Cables per Customer's Specific Requirement...
Product Description
Product Description

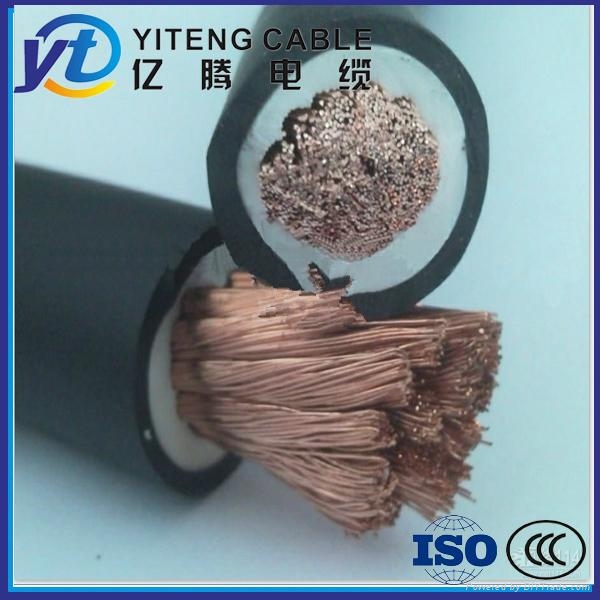

Flexible Rubber Sheath Welding Cable With Copper or Aluminum Conductor
1. Service Cnditions
1.1. The cable can be used in the connectors of electric weld and pliers of the electrical welding
whose toward earth voltage of the low voltage is not more than AC 200V and the pulsating DC peak value is 400V.
1.2. The long term permissible working temperature of cable conductive core is not more than 65°C.
Nominal Cross-section 10mm2-185mm2
2. Rubber Welding Cable Specification:
Welding Cable Specification
Cross-section (mm2)
Conductor
Wires*Dia.
Insulation Thickness(mm)
Diameter
Min.
Diameter
Max
Resistance at 20 degree ≤(Ω/km)
Weight
Kg/km
10
322/0.20
1.8
7.5
9.7
1.91
146
16
513/0.20
2.0
9.2
11.5
1.16
218.9
25
798/0.20
2.0
10.5
13.0
0.758
316.6
35
1121/0.20
2.0
11.5
14.5
0.536
426
50
1596/0.20
2.2
13.5
17.0
0.379
592.47
70
2214/0.20
2.4
15.0
19.5
0.268
790
95
2997/0.20
2.6
17.0
22.0
0.198
1066.17
120
1702/0.30
2.8
19.0
24.0
0.161
1348.25
150
2135/0.30
3.0
21.0
27.0
0.128
1648.5
185
1443/0.40
3.2
22.0
29.0
0.106
1983.8
Quality Assurance:
With Yiteng, all cables are produced by strict inspection and testing:
1). Raw Material: Copper, Aluminium, PVC, PE and XLPE granules and all other materials are all inspected carefully automatically. Only the qualified will be applied into production, the disqualified will be returned.
